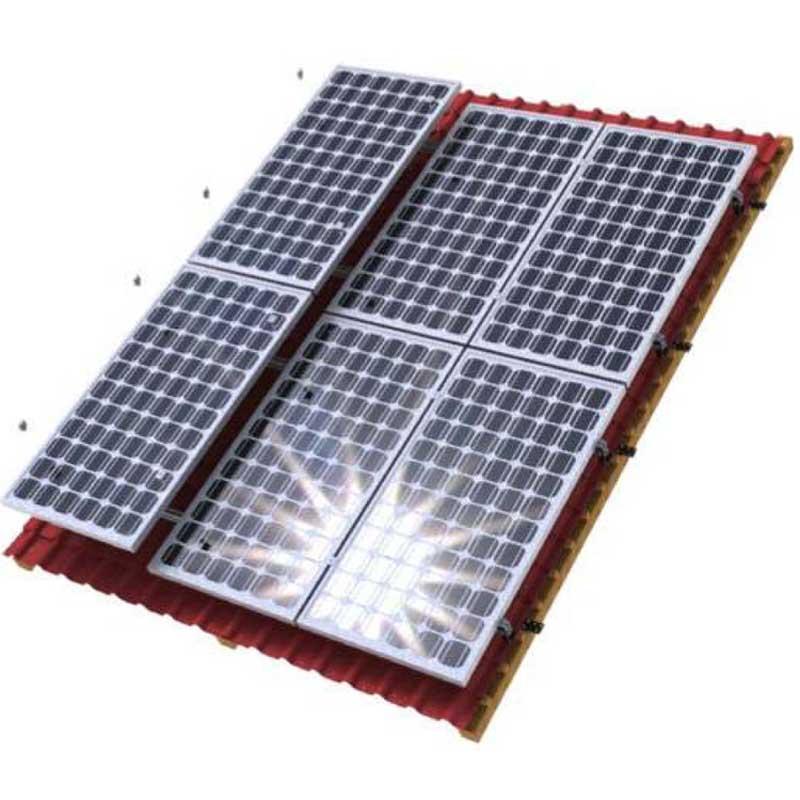

Description of Concrete Tile Roof Solar Mounting System
The concrete tile roof solar mounting systems are designed with few components, which allows for quite easy and fast solar panel installation. With the use of corrosion resistance materials for Solar Panel Mounting Hardware Tile Roof --anodized extruded aluminum rail, solar panel clamps, stainless steel hooks and fasteners, the systems are strong and durable on the rooftops.
Technical Date of Concrete Tile Roof Solar Mounting System
A. PV modules: framed and frameless modules
B. Orientation: portrait or landscape
C. Application: Tile roofs
D. Roof Slope: Up to 60°
E. Material: Aluminum 6005-T5, SUS304
F. Max. Wind load: 45M/S
G. Max. Snow load: 1.0kn/m²
H. Warranty: 10 years for materials
Accessories of Concrete Tile Roof Solar Mounting System
1. Tile roof hook
2. Aluminum roof rail
3. Solar panel clamps(mid clamps and end clamps)
4. Rail splice
5. Grounding parts
6. Roofing screw bolts
Types of Solar Panel Roof Hooks for Choice
